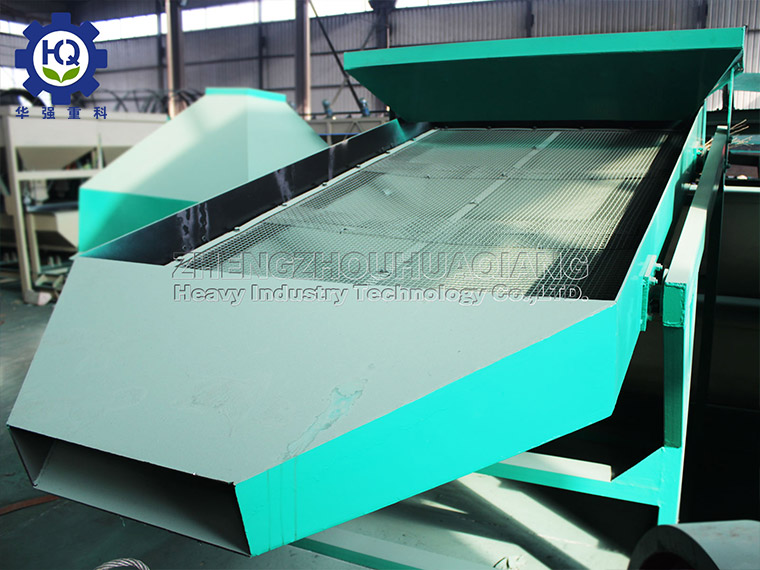

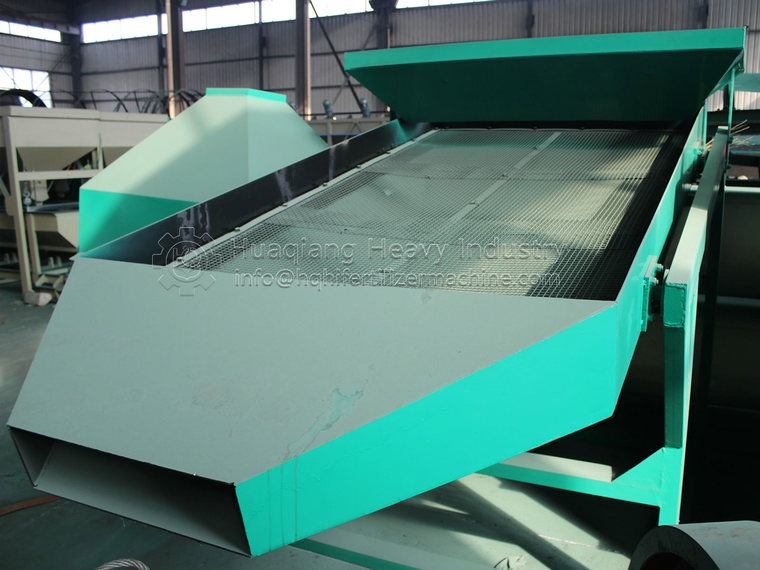

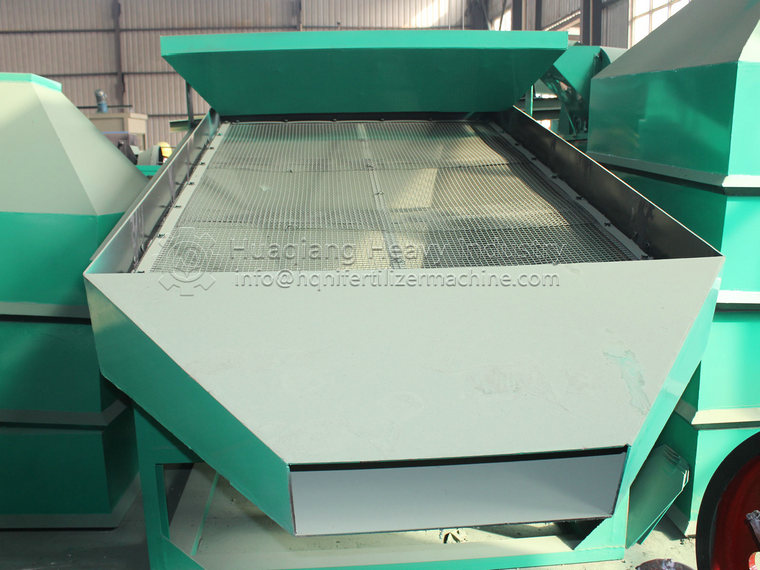

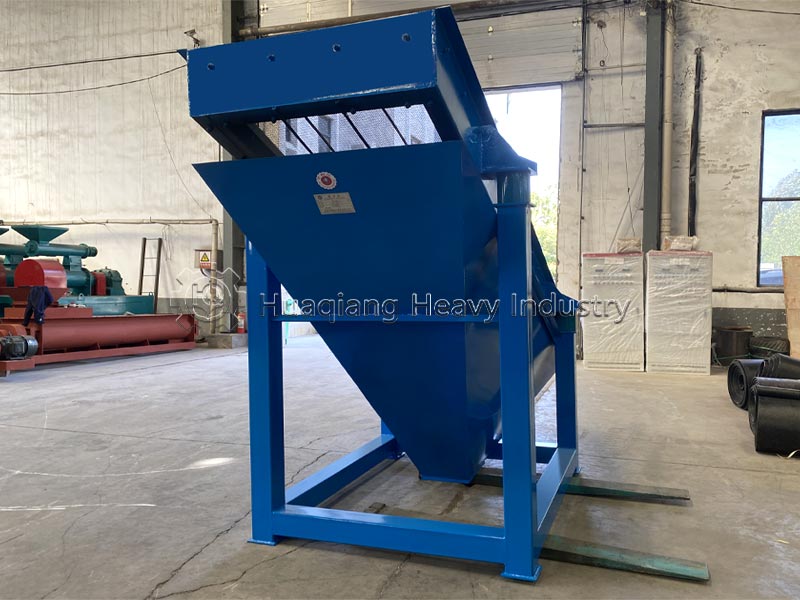

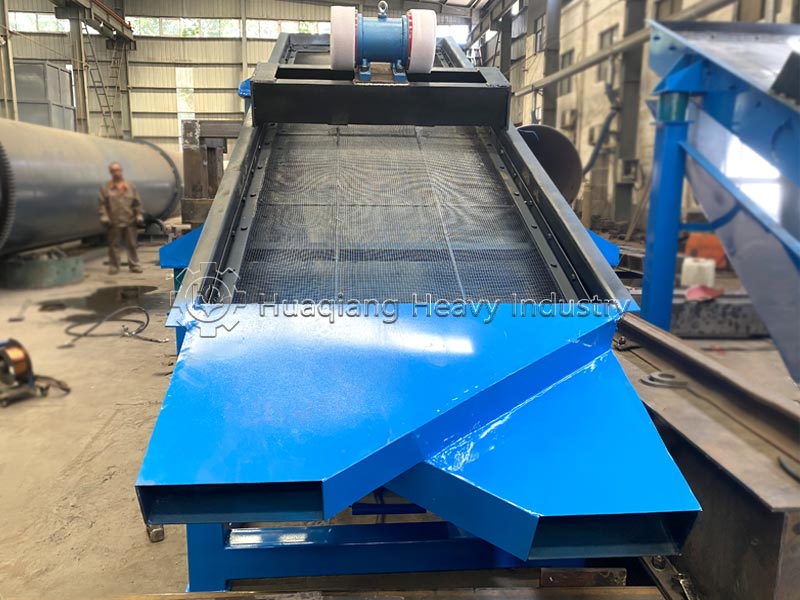

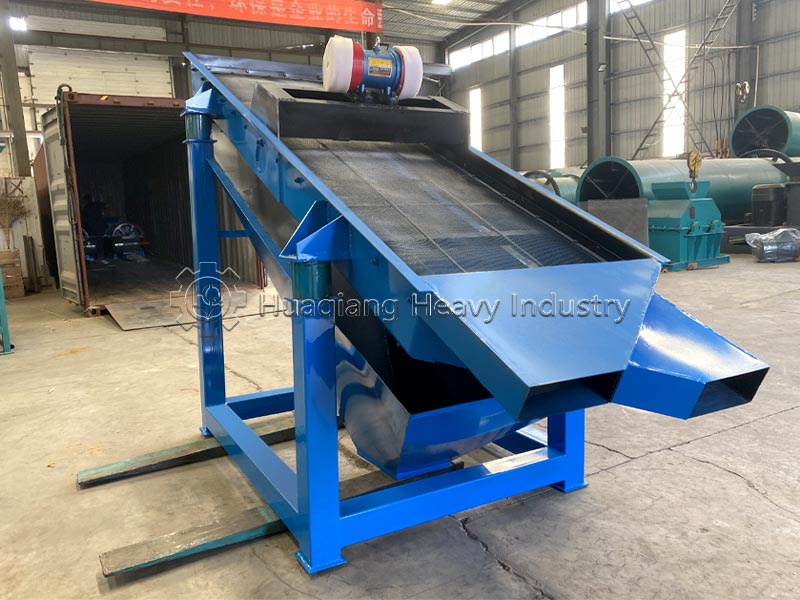

Vibration Screener Machine

The vibrating screen machine is specially designed and developed by our company for screening compound fertilizers. The sieves are divided into two types: single layer and double layer. The mesh is made of high quality manganese steel with simple structur.....





Model: ZS1×3/ZS1.2×4/ZS1.4×5





Motor Power: 3-5/5-8/8-15
Share With:
Details
Video
Parameters
Inquiry
Related Products
Details
INTRODUCTION
The virbration screener machine is designed to separated the qiality fertilizer granulator which its size meet the producation requirement,from the inquality fertilizer granulator.The virbration screener uses the virbrating motor as the vibration source,the material enters the feeding port evenly from the feeder,so that the material is thrown up on the screen,and moved forward linearly at the same time. Several kinds of sieves and sifter are produced by te multi-layer screen,and are respectively discharged from respective outlets.It has the characteristics of low energy consumption,high capacity,simple structure,easy maintenance and so on,which is more suitable for production line operation.The vibrating screen can also be used for the screening and grading of powdery and granular materials.It is widely used in the production of fertilizer,abrasive,chemical,pharmaceutical,building materials grain,carbon and other industries.

STRUCTURE
The motor is transmitted to the vibrator drive shaft and the gear vibrator (speed ratio is 1). The three axes rotate at the same speed and produce the vibration force. The vibration exciter is connected with the sieve box through high strength bolts to produce elliptical motion. The material is carried out at high speed elliptical motion on the sieving machine. The material is quickly layered and moved forward through screen mesh, and finally the material is classified.

Video
Vibration Screener Machine
Parameters
Model ZS1×3 ZS1.2×4 ZS1.4×5
Screening area (m²) 3 4.8 7
Prod capacity (t/h) 3-5 5-8 8-15
Motor power (kW) 1.5 2.2 1.5×2
Vibration Frequency (r/min) 960 960 960
Amplitude(mm) 4-6 4-6 4-6
Dimensions LxWxH (m) 3.4×1.5×2.7 4.1×1.6×3.8 5.4×1.7×4.1
Equipment Weight (kg) 1850 3500 4500
