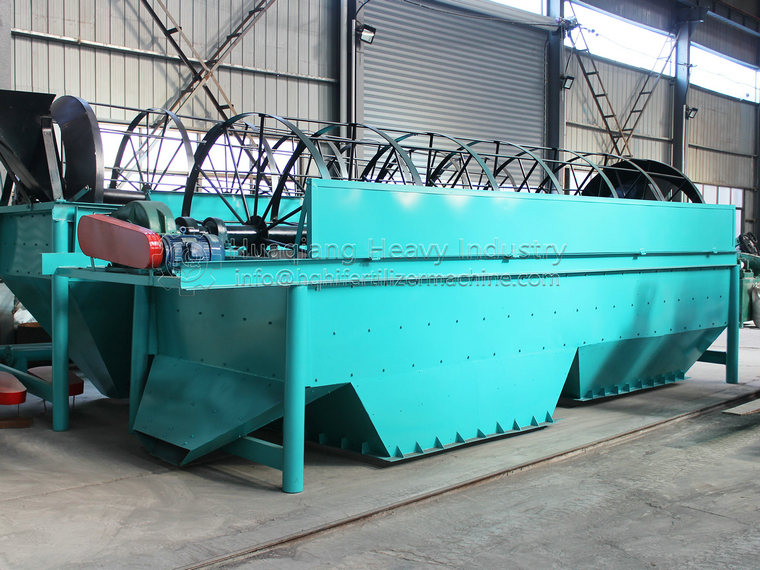

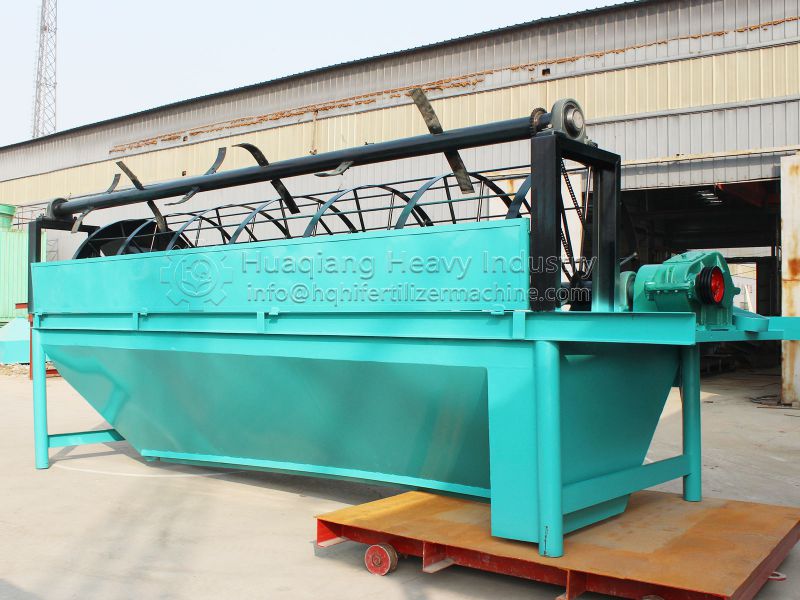

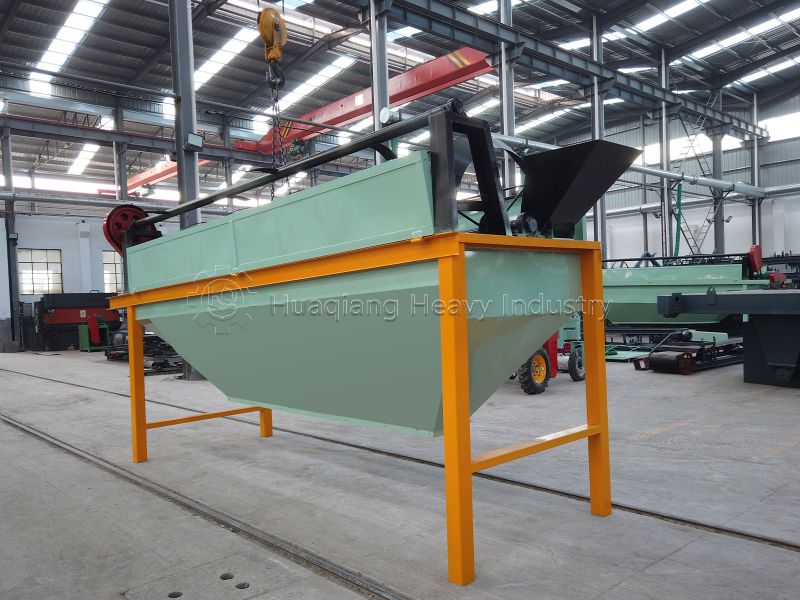

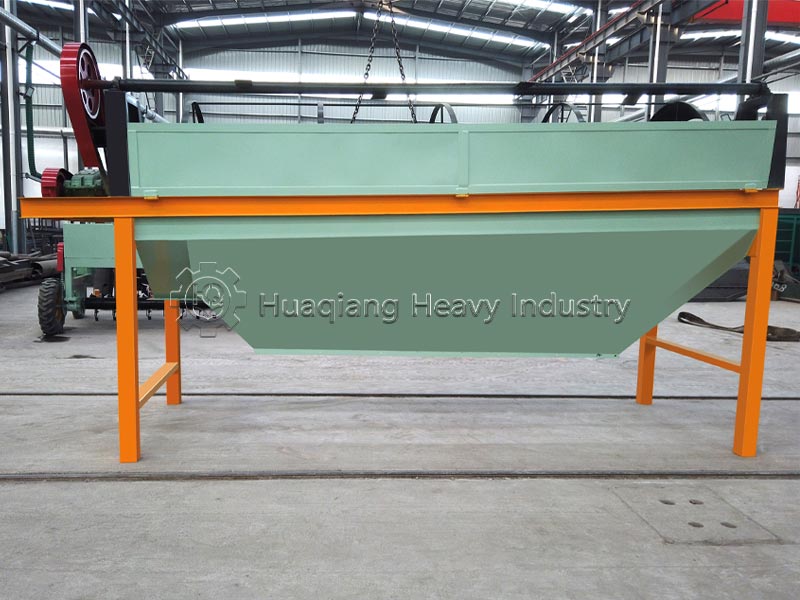

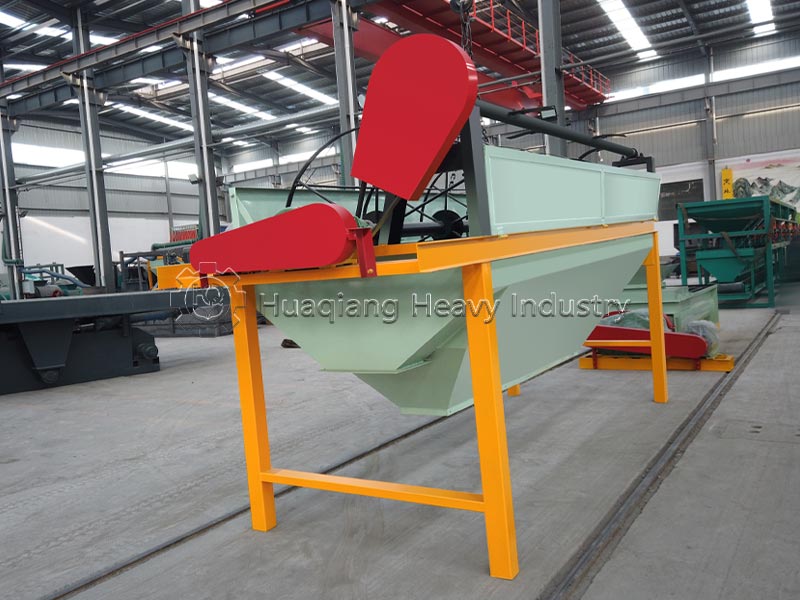

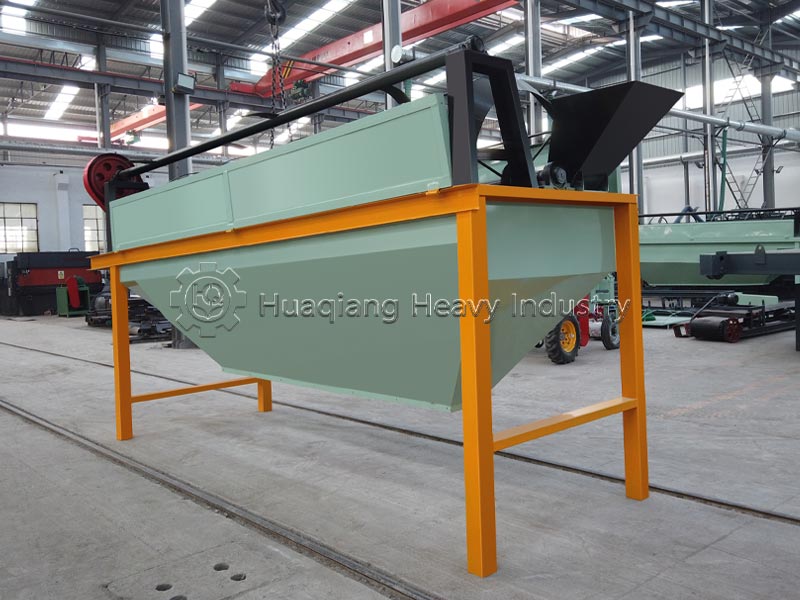

The drum fertilizer screener machine is a core piece of screening equipment in compound and organic fertilizer production lines; it is primarily used to separate finished products from material to be reprocessed, while also enabling the classification of finished products into uniform grades. Featuring a modular screen structure, the equipment is characterized by its simple design, ease of operation, and stable performance.

What are the structural components of a drum screener machine?

The fertilizer drum screener machine primarily consists of a motor, a speed reducer, a drum assembly, a frame, a sealing cover, and inlet/outlet ports. The drum assembly is mounted at an incline on the frame; the motor connects to the drum assembly via the speed reducer and a coupling, driving the drum to rotate around its axis.

Structurally, it comprises three main components:

Frame assembly: Constructed by welding high-quality carbon steel plates and channel steel, adhering to strict quality certification and specific manufacturing process requirements.

Drive and screening assembly: Features modular screen mesh; power is transmitted from the drive wheel to the main shaft via a coupling, with the screen mesh mounted and welded onto the drum cage of the main shaft.

Drive connection assembly: The motor drives the system through a pulley, V-belt, and speed reducer to rotate the main shaft; a pin-type coupling connects the speed reducer to the main working unit to transmit drive power, facilitating assembly and maintenance.

Working Principle of the Drum Screener Machine

The fertilizer drum screener machine utilizes a gearbox-based reduction system to drive the rotation of its central separation drum. This drum features a screening surface composed of multiple annular flat steel rings and is installed at an incline relative to the ground.

During operation, material enters the drum's mesh section from the upper end. As the drum rotates, fine material passes through the gaps between the annular steel rings and is discharged from the lower outlet, while coarse material exits from the lower end of the drum and proceeds to a crusher for further processing.

The equipment is equipped with an automatic plate-type screen cleaning mechanism. During the separation process, the relative movement between this mechanism and the screen body continuously “combs”; the screen, ensuring it remains clean throughout operation and preventing screening efficiency from being compromised by clogged apertures.

What are the application scenarios for drum screener machines?

Drum screener machines for fertilizers are widely used in the following scenarios:

Separation of finished products and recycle material: Automatically separating granules that do not meet specifications (recycle material) and returning them to the crushing or granulation stage, thereby reducing raw material waste.

Granule grading and quality control: Screening fertilizer granules by size and removing impurities such as stones and clumps to ensure product uniformity.

Packaging optimization: Screening out oversized granules and dust to prevent packaging machine clogs and improve product flowability.

Beyond the fertilizer industry, rotary screening machines are also widely used for screening and grading materials—such as raw coal, sand, and crushed stone—in sectors including mining, metallurgy, construction materials, and chemicals.

How to Choose the Right Fertilizer Drum Screener Machine?

When selecting a fertilizer drum screener machine, it is recommended to consider the following aspects comprehensively:

Production Scale

Select a model with the appropriate production capacity based on daily or hourly output requirements.

Material Characteristics

Different materials vary in moisture content, stickiness, and particle size; therefore, the appropriate screen mesh material and aperture size must be selected.

Site Conditions

Choose dimensions that fit the available space in your facility.

Auxiliary Equipment

Trommel screens are typically used in conjunction with granulators, dryers, coolers, and packaging machines; the coordination of the entire production line must be taken into account.

Manufacturer Qualifications

Choose a fertilizer machinery manufacturer with proven production experience and comprehensive after-sales service.
